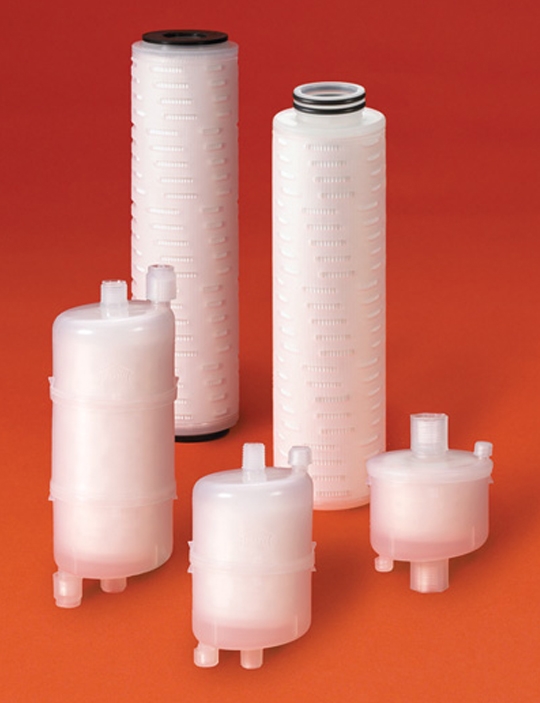

ProcessGard® PES Cartridge Filters
PES filters for weak acids, bases and DI water filtration
● Asymmetric PES structure provides longer life-time and high flow rate
● Hydrophilic PES media eliminates prewetting treatment, reduces filter changeout time and increases equipment uptime
● Various retention ratings, fitting sizes and types to meet various requirements
Download：
Specifications：
PES filters for weak acids, bases and DI water filtration
● Asymmetric PES structure provides longer life-time and high flow rate
● Hydrophilic PES media eliminates prewetting treatment, reduces filter changeout time and increases equipment uptime
● Various retention ratings, fitting sizes and types to meet various requirements
Download：
Specifications：
| Materials: |
Membrane: Hydrophilic polyethersulfone Supports, core, sleeve: Polypropylene O-rings (AS568-222): EPDM, fluoroelastomer, E-FKM (encapsulated fluoroelastomer) |
| Dimensions (nominal): |
Length: 263 mm (10.35”) Diameter: 70 mm (2.75”) |
| Operating conditions: |
Maximum forward differential pressure: 0.5 MPa@20°C (68°F); 0.25 MPa @ 50°C (122°F); 0.12 MPa @ 20°C (68°F) Maximum reverse differential pressure: 0.3 MPa @ 20°C Maximum operating temperature: 80°C (176°F) |
| Retention rating: |
0.04, 0.05, 0.1, 0.2, 0.45 and 1.0 μm |
