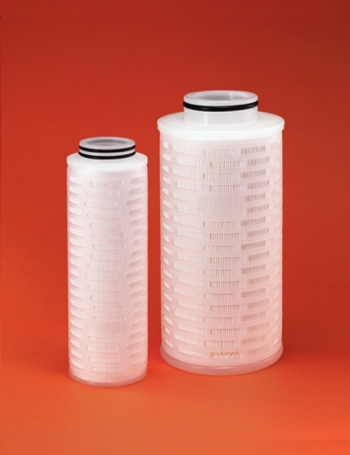

Savana® PS Filters
Ideal for weak acids, bases and DI water applications
● Asymmetric PS structure provides longer lifetime and high-flow rate performance
● Hydrophilic PS media eliminates prewetting treatment, reduces filter change-out time and increases equipment uptime
● Various retention ratings and types to meet a wide range of application requirements
檔案下載:
規格說明:
Ideal for weak acids, bases and DI water applications
● Asymmetric PS structure provides longer lifetime and high-flow rate performance
● Hydrophilic PS media eliminates prewetting treatment, reduces filter change-out time and increases equipment uptime
● Various retention ratings and types to meet a wide range of application requirements
檔案下載:
規格說明:
Materials: |
Membrane: Hydrophilic polyethersulfone Support, core, sleeve: Polypropylene O-ring: EPDM, FKM, E-FKM |
Retention ratings: |
0.1, 0.2, 0.45, 1.2 µm |
Maximum operating conditions: |
Maximum forward differential pressure: 0.4 MPa (4 bar, 58 PSI) @ 20° (68°F), 0.2 MPa (2 bar, 29 PSi) @ 90°C (194°F) Maximum reverse differential pressure: 0.2 MPa (2 bar, 29 PSI) @ 20°C (68°F) Maximum operating temperature: 90°C (194°F) |
Dimensions (nominal): |
Length: 260 mm (CD-O, 10") Diameter: 68 mm (CD-0/F/5/7/8) |
