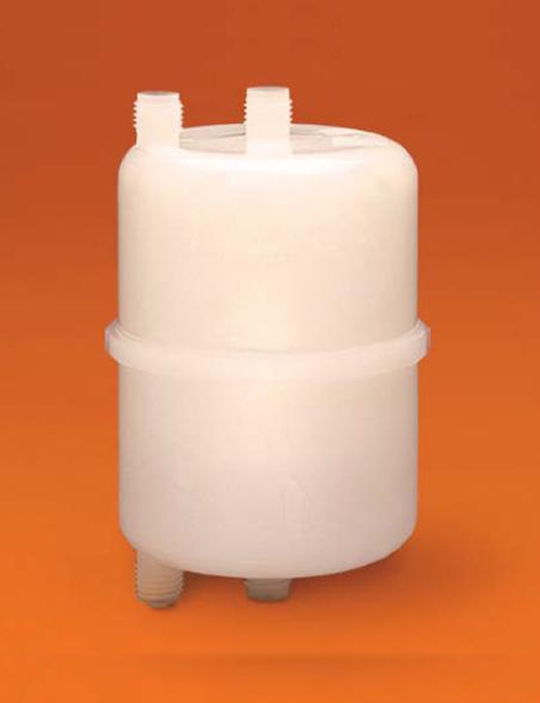

Panelgard™ PDP Disposable Filters
Point-of-use all-polypropylene filters for pigment dispersed photoresist, acids, alkalis and pure water
Download：
Specifications：
Point-of-use all-polypropylene filters for pigment dispersed photoresist, acids, alkalis and pure water
Download：
Specifications：
| Materials: |
Membrane, core, sleeve, supports, housing : Polypropylene |
| Connection: |
6.35mm(1/4”) compression seal |
| Membrane Area: |
0.6um 1,600 cm2 (1.72 ft.2) 1.2.um 1,300 cm2 (1.4 ft.2) 2.5um 1,300 cm2 (1.4 ft.2) 5.0um 1,600 cm2 (1.72 ft.2) 10.0um 1,400 cm2 (1.51 ft.2) |
| Maximum operating conditions: |
Maximum Forward/Reverse Differential Pressure:0.27 MPa (2.7 bar; 39.2 psid) @ 25° C Maximum Operating Temperature: 38° C (100°F) |
