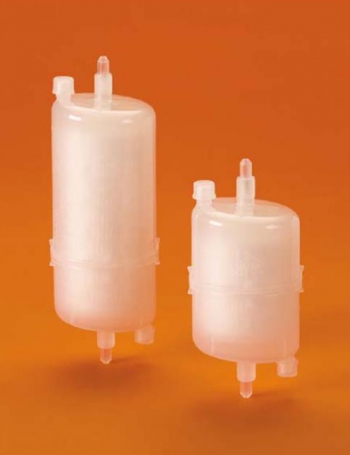

Planarcap® TPX Disposable Filters
Point-of-use disposable filters for ceria and other smaller abrasive particles at low concentrations
● Pleat design provides customers with superior lifetime and flow
● Provides a reduction in micro-scratches and total defects
● Planarcap® TPX Series is specially designed for Ceria and colloidal slurries
● Optimized to remove defect causing particles while maintaining a low pressure drop and higher lifetime over existing products
Download：
Specifications：
Point-of-use disposable filters for ceria and other smaller abrasive particles at low concentrations
● Pleat design provides customers with superior lifetime and flow
● Provides a reduction in micro-scratches and total defects
● Planarcap® TPX Series is specially designed for Ceria and colloidal slurries
● Optimized to remove defect causing particles while maintaining a low pressure drop and higher lifetime over existing products
Download：
Specifications：
| Materials: |
Medium: Pleated depth polypropylene Core, cage and shell: Polypropylene |
| Connections: |
Inlet/outlet: 3/8” or 1/4” Flaretek® fitting Vent/drain: 1/4” Flaretek® fitting |
| Maximum operating conditions: |
Maximum operating pressure: 0.27 MPa (2.7 bar, 40 PSI) at 25°C Maximum forward/reverse differential pressure: 0.27 MPa (2.7 bar, 40 PSID) at 20°C Maximum operating temperature: 40°C (104°F) |
