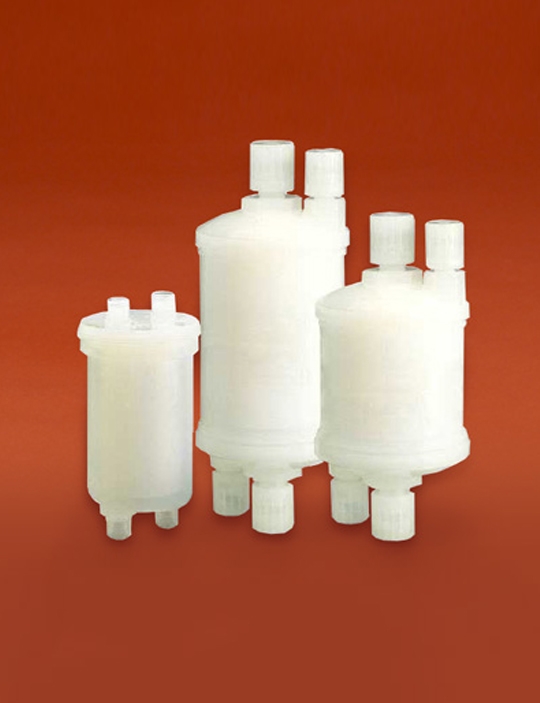

Fluoroline™ P1000, P1500 and P3000 Disposable Filters
High-performance, cost-effective disposable filters for low flow applications
● High-performance hydrophobic filters for flows up to 5 L/min
● Constructed entirely of Teflon® fluoropolymer resin
● Cost-effective filters provide compatibility with a wide range of acids, bases, and non-flammable solvents at ambient temperatures
● Compact size
● 1,000 cm2 membrane area
檔案下載：
規格說明：
High-performance, cost-effective disposable filters for low flow applications
● High-performance hydrophobic filters for flows up to 5 L/min
● Constructed entirely of Teflon® fluoropolymer resin
● Cost-effective filters provide compatibility with a wide range of acids, bases, and non-flammable solvents at ambient temperatures
● Compact size
● 1,000 cm2 membrane area
檔案下載：
規格說明：
| Materials: |
Membrane: PTFE Supports and molded parts: PFA |
| Connection: |
1000 cm2 , 1300 cm2 , 3000 cm2 |
| Maximum operating conditions: |
Maximum inlet pressure: 0.40 MPa (4.0 bar, 60 PSI) at 25°C Maximum forward differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 25°C Maximum reverse differential pressure: 0.29 MPa (2.9 bar, 42 PSID) at 25°C |
