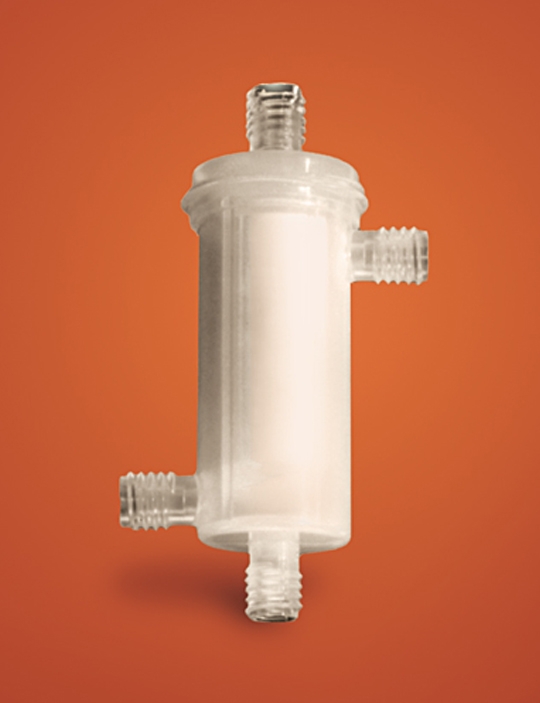

Fluoroline™-S Disposable Filters
Disposable filters for small volume point-of-use filtration of non-flammable solvents, acids and bases
● Small, cost-effective for low-volume filtration
● Hydrophobic PTFE membrane filter, compatible with a wide range of acids, bases and non-flammable solvents
● High-purity connections with no o-rings avoid potential sources of contamination and ensure downstream cleanliness
檔案下載：
規格說明：
Disposable filters for small volume point-of-use filtration of non-flammable solvents, acids and bases
● Small, cost-effective for low-volume filtration
● Hydrophobic PTFE membrane filter, compatible with a wide range of acids, bases and non-flammable solvents
● High-purity connections with no o-rings avoid potential sources of contamination and ensure downstream cleanliness
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic PTFE Supports and molded parts: PFA |
| Membrane area: |
12 cm2 (1.86 in2) |
| Connections: |
1/4” and 1/8” Swagelok® compatible fittings |
| Operating conditions: |
Maximum forward differential pressure: 0.35 MPa (3.5 bar, 50 PSID) @ 20°C Maximum reverse differential pressure:0.035 MPa (0.35 bar, 5 PSID) @ 20°C Maximum operating temperature:60°C (140°F) |
