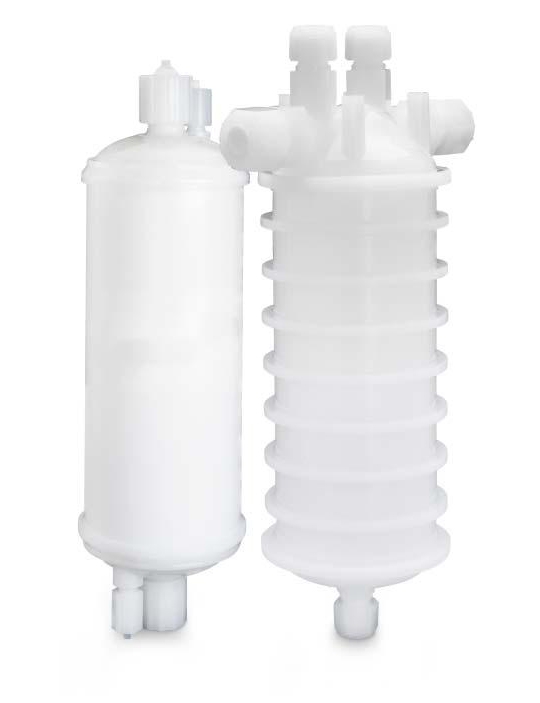

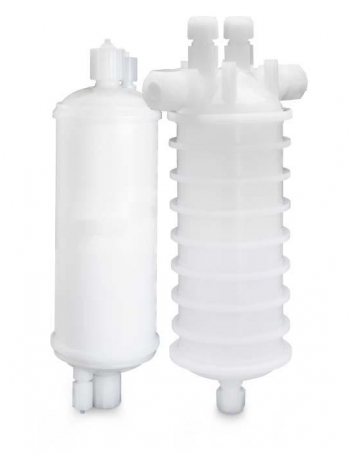

Guardian™ ATX Disposable Filters
Hydrophobic membrane for ultra-high purity chemicals
● Ideal for higher temperature applications
● All-fluoropolymer materials of construction provide a broad range of chemical compatibility. Suitable for a variety of chemicals and solvents
● Highly retentive hydrophobic PTFE membrane made of Telfon® fluoropolymer resin provides excellent removal of small, critical-size particles to ensure low particle counts in chemical delivery systems
● ATX: Large membrane surface area to deliver high flow rates at minimal pressure drop
● For Industrial Use Only. Not for use in food, drug, cosmetic or medical devices manufacturing, processing or packaging operations
檔案下載：
規格說明：
Hydrophobic membrane for ultra-high purity chemicals
● Ideal for higher temperature applications
● All-fluoropolymer materials of construction provide a broad range of chemical compatibility. Suitable for a variety of chemicals and solvents
● Highly retentive hydrophobic PTFE membrane made of Telfon® fluoropolymer resin provides excellent removal of small, critical-size particles to ensure low particle counts in chemical delivery systems
● ATX: Large membrane surface area to deliver high flow rates at minimal pressure drop
● For Industrial Use Only. Not for use in food, drug, cosmetic or medical devices manufacturing, processing or packaging operations
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic PTFE Supports: PFA 440 HP supports, core, and sleeve Shell: PFA 440 HP vent plugs and housing shell made of Teflon fluoropolymer resin Nuts: Non-wetted component, PFA 440 HP |
| Membrane area: |
10”: 13000 cm2 (14 ft.2) 4”: 5000 cm2 (5.4 ft.2) |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.45 MPa (4.5 bar, 64 PSID) at 25°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) at 25°C Maximum operating temperature: 150°C (302°F) at 0.5 bar (7.3 PSI) |
| Cleanliness: |
Filter contributes <2 particles/mL >=2 μm after five-minute flush at 5 L/min. |
| Compatibility: |
Guardian ATX disposable filters are optimized for performance in chemical delivery systems for sulfuric acid, nitric acid, acetic acid, phosphoric acid, hydrochloric acid, hydrogen peroxide, organic strippers and various non-flammable solvents. For point-of-use recirculation applications and filtration of other liquids. |
