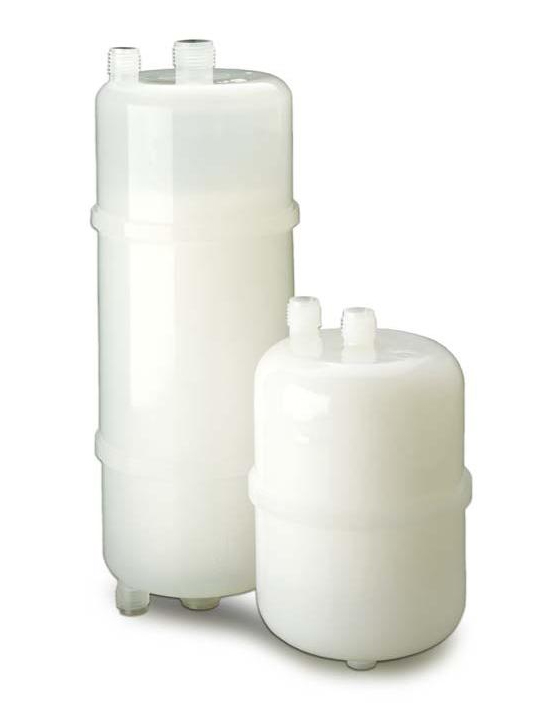

Fluorex ™ HP and HP-L Disposable Filters
Delivering Quality Performance for Aqueous-based Chemicals
● Hydrophilic filters ideal for filtration of developer, pure water,and aqueous-based photoresists and chemicals
● Manufactured in a world-class, ISO 9001 Quality Systems Standard facility
● Manufactured, tested, and packaged in a cleanroom to ensure product cleanliness.
檔案下載：
規格說明：
Delivering Quality Performance for Aqueous-based Chemicals
● Hydrophilic filters ideal for filtration of developer, pure water,and aqueous-based photoresists and chemicals
● Manufactured in a world-class, ISO 9001 Quality Systems Standard facility
● Manufactured, tested, and packaged in a cleanroom to ensure product cleanliness.
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophilic PTFE Supports, core: Polypropylene Disposable Shell: Polypropylene |
| Membrane Area: |
HP: 1,000 cm2 (1.07 ft.2) HP-L: 2,000 cm2 (2.15 ft.2) |
| Connections: |
HP Inlet/Outlet:1/4” or 1/2” compression seal fittings HP -L Inlet/Outlet:3/8” or 1/2” compression seal fittings Vent/Drain:1/4” compression seal fittings |
| Maximum Operating Conditions: |
Maximum Inlet Pressure: 1.HP: 0.275 MPa (2.75 bar; 40 psi) @ 25° C 2.HP-L: 0.34 MPa (3.5 bar; 50 psi) @ 25° C Maximum Forward/Reverse Differential Pressure:0.345 MPa (3.45 bar; 50 psid) @ 23° C Maximum Operating Temperature: 40° C |
