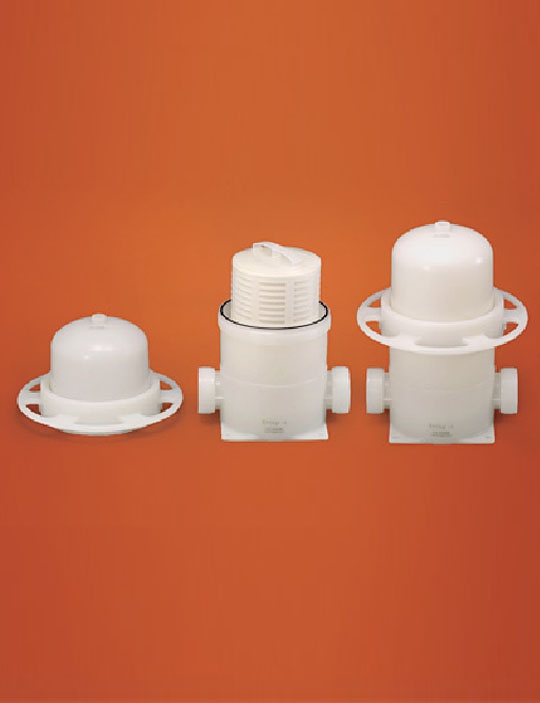

Panelgard™ EX Housings
High-flow rate design for flat panel display applications
High-flow rate design for flat panel display applications
● Convenient handle to improve cleanliness and safety
● Made with high-quality PVDF
● PVDF locking ring to properly seat the filter cartridge
檔案下載 ：
規格說明 ：
|
Materials: |
Housing head: PVDF |
|
Connections: |
Inlet/outlet: 65A, 50A, or 40A (Reducing sleeve on 50A and 40A） |
|
Vent/drain: |
1/2” Rc |
|
Maximum operating conditions: |
Maximum operating pressure: 0.69 MPa at 25°C (0.6 MPa at 50°C) (static) PSI equivalents |
