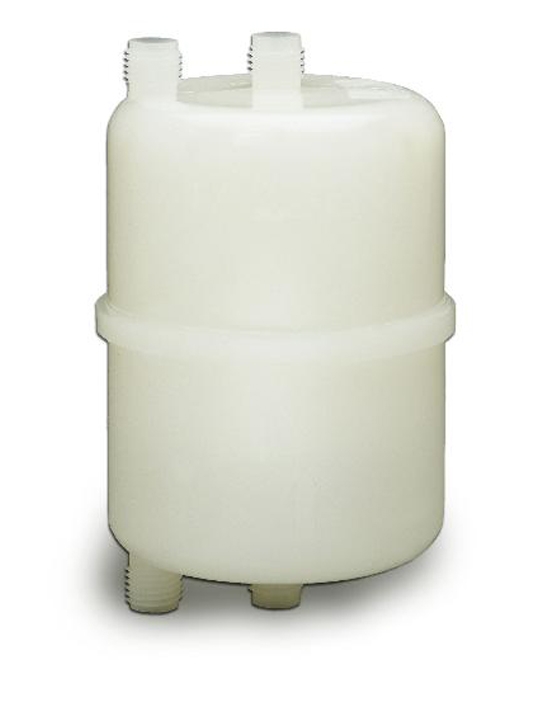

Fluorex-S Disposable Filters
Disposable filters for small volume point-of-use filtration of photochemicals,solvents, acids and bases at ambient temperature
● Cost-effective for Low-volume Filtration
● Manufactured in a world-class, ISO 9001 Quality Systems Standard facility
● Manufactured, tested, and packaged in a cleanroom to ensure product cleanliness
檔案下載：
規格說明：
Disposable filters for small volume point-of-use filtration of photochemicals,solvents, acids and bases at ambient temperature
● Cost-effective for Low-volume Filtration
● Manufactured in a world-class, ISO 9001 Quality Systems Standard facility
● Manufactured, tested, and packaged in a cleanroom to ensure product cleanliness
檔案下載：
規格說明：
| Materials: |
Filtration Material: Hydrophobic polytetrafluoroethylene (PTFE) membrane Polypropylene supports and housing |
| Dimensions: |
1/2” Fittings:Length: 116 mm [4.6”] Width: 69 mm [2.7”] 1/4” Fittings:Length: 113 mm [4.45”] Width: 69 mm [2.7”] |
| Fittings: |
Inlet/Outlet: 1/4” or 1/2” compression seal (Swagelok fitting compatible) Vent/Drain: 1/4” compression seal |
| Operating Conditions: |
Maximum Operating Pressure:0.54 MPa (5.4 bar, 80 psid) @ 25° C Maximum Forward/Reverse Differential Pressure: 0.27 MPa (2.7 bar, 40 psid) @ 25° C Maximum Operating Temperature: 60° C |
| Membrane Area: |
1,000 cm2(1.1 ft2) |
