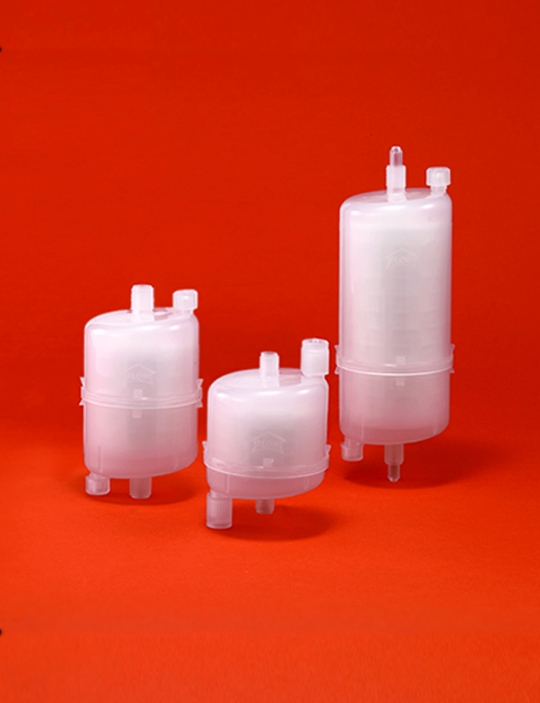

Savana® PTFE Disposable Filters
Constructed with PTFE membrane, PP supports and PP housing for enhanced durability
● Pleated PTFE membrane with polypropylene support and housing provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
● Hydrophobic version for IPA or weak solvent applications in flat panel display or hard disk industries
● Hydrophilic version for DI water and water-based nonaggressive light acid/alkaline solutions
檔案下載：
規格說明：
Constructed with PTFE membrane, PP supports and PP housing for enhanced durability
● Pleated PTFE membrane with polypropylene support and housing provides excellent chemical compatibility
● 0.1, 0.2, 0.5, 1, 3, 10 µm pore ratings available for wide range of applications
● Hydrophobic version for IPA or weak solvent applications in flat panel display or hard disk industries
● Hydrophilic version for DI water and water-based nonaggressive light acid/alkaline solutions
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic PTFE Support: Polypropylene Sleeve/caps/core: Polypropylene Housing: Polypropylene |
| Retention rating: |
0.1, 0.2, 0.5, 1, 3, 10 µm |
| Maximum operating: |
Maximum forward differential pressure: 0.42 MPa @ 25°C (77°F) Maximum reverse differential pressure: 0.21 MPa @ 25°C (77°F) Maximum operating pressure: 0.5 MPa @ 25°C (77°F) Maximum operating temperature: 60°C (in water) |
