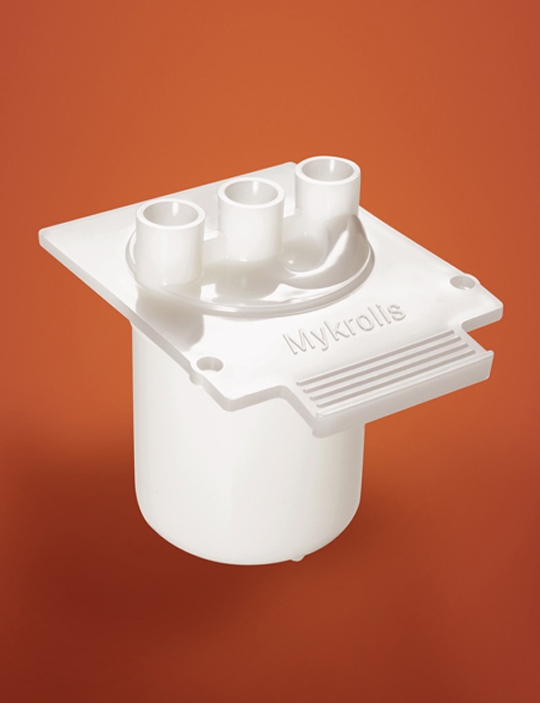

Impact® Plus V2 Disposable Filters
Point-of-Use filter for photochemicals: including photoresists and solvents
● Ultra-high molecular weight polyethylene (UPE) membrane technology
● Rapid filter change-out design
● Low hold-up volume limits chemical waste
● Designed for use with the Impact® ST manifold and IntelliGen® Mini dispense system
檔案下載：
規格說明：
Point-of-Use filter for photochemicals: including photoresists and solvents
● Ultra-high molecular weight polyethylene (UPE) membrane technology
● Rapid filter change-out design
● Low hold-up volume limits chemical waste
● Designed for use with the Impact® ST manifold and IntelliGen® Mini dispense system
檔案下載：
規格說明：
| Materials: |
Seiving membrane: Ultra-high molecular weight polyethylene (UPE) Nonsieving layer: Polyamide Supports: PE (upstream and downstream) Molding: HDPE Manifold/fittings: With Impact ST manifold |
| Dimensions: |
Heighht: 90 mm (3.54") Width: 71.9 mm (2.83") Depth: 95.5 mm (3.76"") |
| Maximum Operating Conditions: |
Maximum inlet pressure: 0.34 Mpa (3.4 bar, 50 PSI) @ 25°C Maximum forward/reverse differntial pressure: 0.27 MPa (2.7 bar, 50 PSI) @ 25°C Maximum operating temperature: 40°C (104°F) |
| Hold up volume: |
<55 cc |
| Compatibility: |
PGMEA, PGME, NMP, ethyl lactate, MMP, and cyclohexanone. Not recommended for use with photochemicals containing aromatic hydrocarbons |
| Wettability: |
Spontaneously wets in butyl acetate, PGMEA, PGME, ethyl lactate, MMP, ECA and other photochemical solvents |
