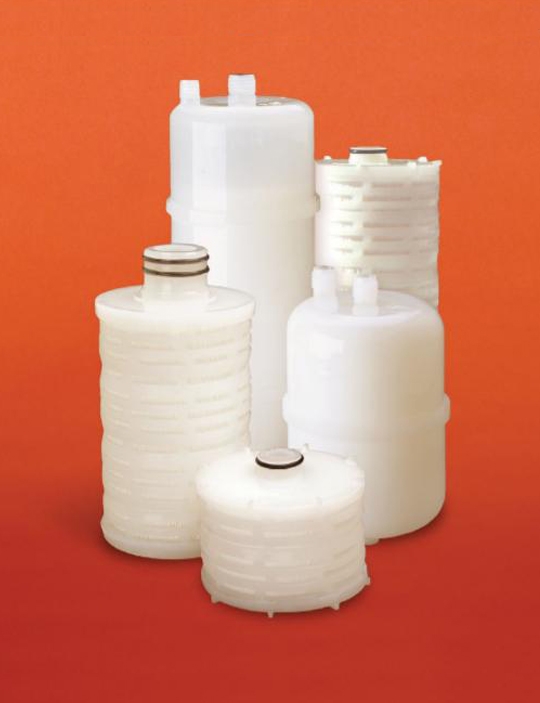

Optimizer® DEV and DI Disposable Filters
Hydrophilic UPE filters for point-of-use developer and DI water applications
● Ideal for positive developer solutions and DI water applications
● Patented hydrophilic UPE membrane spontaneously wets in aqueous solutions
● Excellent flow with additional ion uptake performance
● Available with ultra-high membrane area for improved retention and flow performance
檔案下載:
規格說明:
Hydrophilic UPE filters for point-of-use developer and DI water applications
● Ideal for positive developer solutions and DI water applications
● Patented hydrophilic UPE membrane spontaneously wets in aqueous solutions
● Excellent flow with additional ion uptake performance
● Available with ultra-high membrane area for improved retention and flow performance
檔案下載:
規格說明:
Materials: |
Membrane: Patented surface-modified hydrophilic ultra-high molecular weight polyethylene (UPE) Supports: High-density polyethylene (HDPE) supports, end caps, support, cage, core O-rings: EPDM, Kalrez® perfluoroelastomer or Teflon® fluoropolymer encapsulated Viton® fluoroelastomer (TEV) |
Filtration area: |
16-stack 1600 cm2 (248 in2) 40-stack 3200 cm2 (496 in2) |
Maximum operating conditions: |
Maximum operating pressure: 0.345 MPa (3.45 bar; 50 PSID) at 20°C (68°F) Maximum forward/reverse differential pressure: 0.27 MPa (2.7 bar; 40 PSID) at 25°C (77°F) Maximum operating temperature: 60°C (140°F) |
