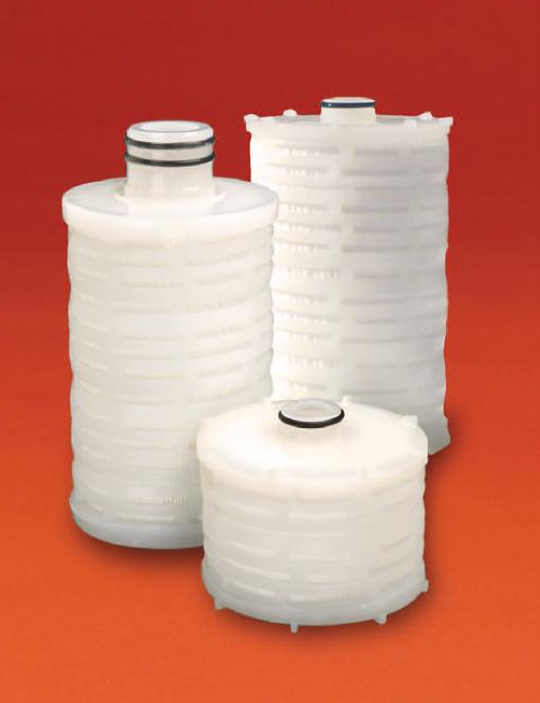

Optimizer® PR 16 and PR 40 Filters
Patented hydrophobic UPE filters designed for small- to mid-volume point-of-use photochemical filtration applications
● Reliably removes soft gel particles
● Provides superior downstream cleanliness, low surfactant binding and spontaneous wettability
檔案下載：
規格說明：
Patented hydrophobic UPE filters designed for small- to mid-volume point-of-use photochemical filtration applications
● Reliably removes soft gel particles
● Provides superior downstream cleanliness, low surfactant binding and spontaneous wettability
檔案下載：
規格說明：
| Materials: |
Membrane:Hydrophobic ultra-high molecular weight polyethylene (UPE) End caps, support, cage, core:High-density polyethylene (HDPE) O-ring:EPDM, Kalrez® perfluoroelastomer or Teflon® fluoropolymer encapsulated Viton® fluoroelastomer (TEV) |
| Membrane area: |
PR16: 1,500 cm2(1.62 ft2) / 20 nm 1,900 cm2(2.05 ft2) PR40: 3,500 cm2(3.76 ft2) / 20 nm 4,400 cm2(4.74 ft2) |
| Maximum Operating conditions: |
Maximum inlet pressure:0.34 MPa (3.4 bar, 50 PSI) @ 25° Maximum forward differential pressure:0.34 MPa (3.4 bar, 50 PSID) @ 25° Maximum forward differential pressure:0.27 MPa (2.7 bar, 40 PSID) @ 25° Maximum operating temperature:60°C (140°F) |
| Particle retention: |
20 nm 99.99% retention of 0.034 μm PSL bead 0.05 nm 99.99% retention of 0.055μm PSL bead 0.1 nm 99.99% retention of 0.100 μm PSL bead 0.2 nm 99.99% retention of 0.198 μm PSL bead |
