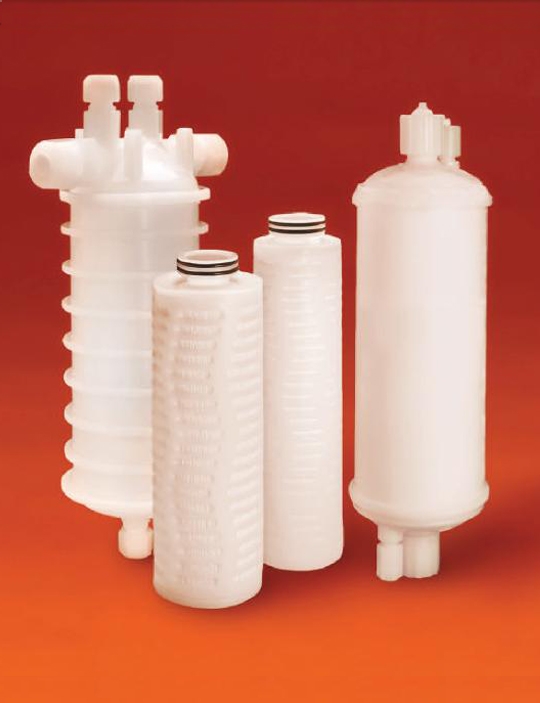

Rinsegard® HPX Disposable Filters
Simultaneously remove trace ions and particles from high-purity DI water while optimizing wafer and semiconductor quality
● Removes trace metallic ions, even from ultrapure water
● Hydrophilic, patented UPE membrane eliminates the need for prewetting or flushing
● All polyethylene construction provides excellent chemical compatibility, long lifetime, reduced changeout and system startup times
檔案下載：
規格說明：
Simultaneously remove trace ions and particles from high-purity DI water while optimizing wafer and semiconductor quality
● Removes trace metallic ions, even from ultrapure water
● Hydrophilic, patented UPE membrane eliminates the need for prewetting or flushing
● All polyethylene construction provides excellent chemical compatibility, long lifetime, reduced changeout and system startup times
檔案下載：
規格說明：
| Materials: |
Membrane: Patented hydrophilic ultra-high molecular weight polyethylene (UPE) Supports, core and sleeve: High-density polyethylene (HDPE) Disposable shell: Polypropylene |
| Membrane area: |
4”: 5000 cm2 (5.4 ft2) 10”: 11000 cm2 (11.8 ft2) |
| Cleanliness: |
Filter contributes <2 particles/mL >=0.2 μm after five-minute flush at 5 L/min. |
| Fittings: |
Inlet/outlet: 3/4” or 1” Flaretek® compatible fittings Vent/drain: 1/4” Flaretek® compatible fittings |
| Maximum operating conditions: |
Maximum forward/reverse differential Pressure: 0.35 MPa (3.5 bar, 50 PSID) at 25°C Maximum operating temperature: 70°C (158°F) |
