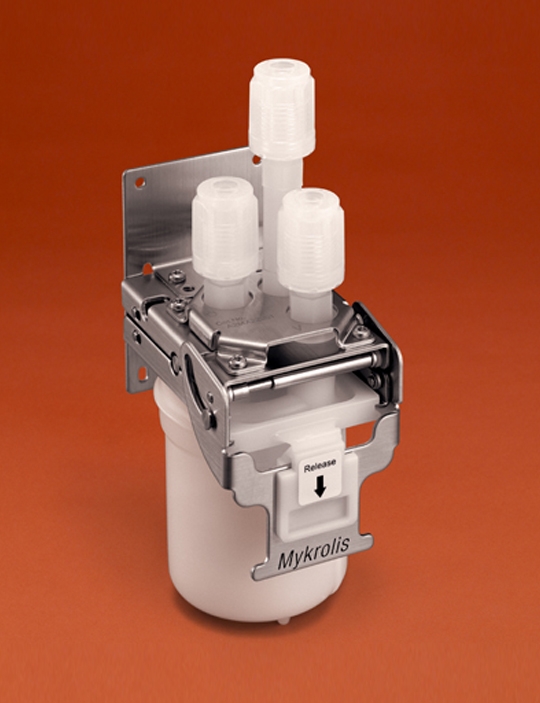

Impact® 2 Manifold
For Impact 2 liquid filters
● Compact, stable design provides easy installation
● Rapid filter changeout with minimal exposure to process fluids
檔案下載:
規格說明:
For Impact 2 liquid filters
● Compact, stable design provides easy installation
● Rapid filter changeout with minimal exposure to process fluids
檔案下載:
規格說明:
Materials: |
Nonwetted surface: Stainless Steel O-rings: Kalrez® perfluoroelastomers |
Fittings: |
6.35 mm Flowell® 60 Type 5/3 mm Flowell 60 Type 6/4 mm Flowell 60 Type 6.35 mm Pillar Super Type |
Maximum operating conditions: |
Maximum inlet pressure: 0.34 MPa (3.4 bar, 50 PSI) @ 25°C Maximum operating temperature: 40°C (104°F) |
