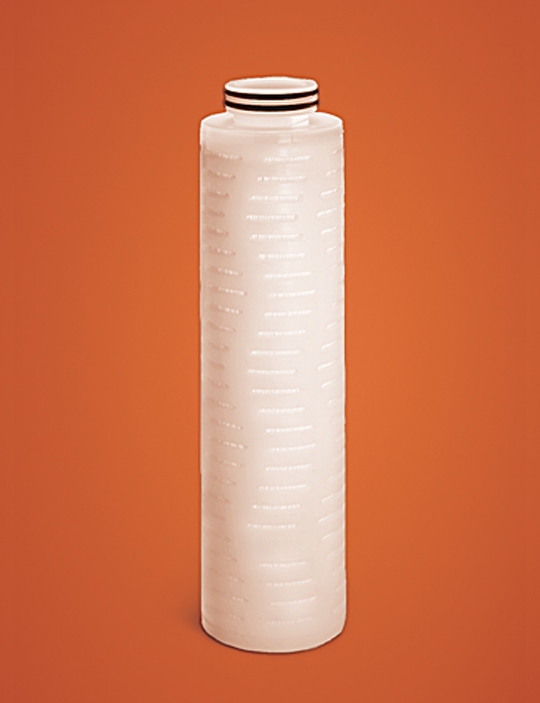

Panelgard™ PDP Cartridge Filters
Point-of-use filter for pigment dispersed photoresist, acids, alkalis and pure water
● Unwoven polypropylene membrane for high retention efficiency, high flow rate and long product life
● Hydrophilic membrane requires no prewetting in aqueous-based chemistries
● Cost-effective construction
檔案下載：
規格說明：
Point-of-use filter for pigment dispersed photoresist, acids, alkalis and pure water
● Unwoven polypropylene membrane for high retention efficiency, high flow rate and long product life
● Hydrophilic membrane requires no prewetting in aqueous-based chemistries
● Cost-effective construction
檔案下載：
規格說明：
| Materials: |
Membrane: Polypropylene Supports, core and sleeve: Polypropylene O-rings: Teflon® fluoropolymer encapsulated Viton® fluoroelastomer O-ring (TEV), EPR |
| Connection: |
Code 0, 2-222 double o-rings |
| Operating conditions: |
Maximum forward/reverse differential pressure: 0.47 MPa (4.7 bar, 68 PSID) @ 25°C Maximum operating temperature: 80°C |
| Membrane area: |
0.6 μm: 8,600 cm2 (9.26 ft2) 1.2 μm: 7,400 cm2 (7.97 ft2) 2.5 μm: 7,400 cm2 (7.97 ft2) 5 μm: 8,600 cm2 (9.26 ft2) 10 μm: 7,500 cm2 (8.07 ft2) |
