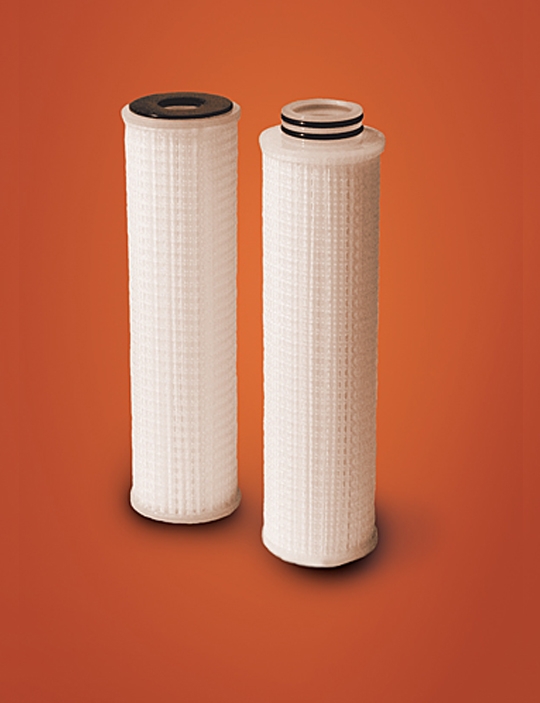

ProcessGard® CN Cartridge Filters
Surface filter with precise retention efficiency for clarification and prefiltration applications
● Used in clarification and prefiltration applications
● Efficiently removes silica particles, carbon fines, resin fines, and other particulates and microorganisms from liquids and gases
● All polypropylene construction offers excellent chemical and heat resistance
● Heat-bonded, continuous fiber polypropylene media provides exceptional throughput and outstanding separation performance
● Minimizes extractables and virtually eliminates problems associated with particle unloading and media migration
檔案下載：
規格說明：
Surface filter with precise retention efficiency for clarification and prefiltration applications
● Used in clarification and prefiltration applications
● Efficiently removes silica particles, carbon fines, resin fines, and other particulates and microorganisms from liquids and gases
● All polypropylene construction offers excellent chemical and heat resistance
● Heat-bonded, continuous fiber polypropylene media provides exceptional throughput and outstanding separation performance
● Minimizes extractables and virtually eliminates problems associated with particle unloading and media migration
檔案下載：
規格說明：
| Materials: |
Membrane: Nonwoven polypropylene Supports, cage, core, sleeve and endcaps: Polypropylene O-rings: Ethylene propylene (EP) o-ring or gasket standard, Silicone, Viton® fluoroelastomer, Teflon® fluoropolymer encapsulated Viton® fluoroelastomer (TEV) |
| Membrane area per 10” cartridge: |
CN03: 0.56 m2 All others: 0.46 m2 |
| Maximum operating conditions: |
Maximum differential pressure: 0.483 MPa (4.83 bar, 70 PSID) at 25°C Maximum operating temperature: 80 °C |
