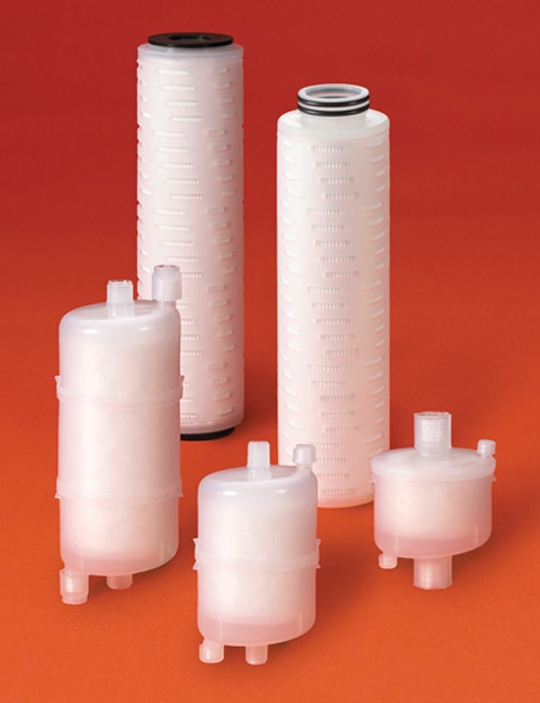

ProcessGard® PP Cartridge Filters
Polypropylene filters for acids, bases, process water, solvents, dyes and lacquers
● Broad chemical and thermal compatibility
● Highly customized configurations available to meet application and customer needs
● Various retention ratings, fitting sizes and types to meet various requirements
檔案下載：
規格說明：
Polypropylene filters for acids, bases, process water, solvents, dyes and lacquers
● Broad chemical and thermal compatibility
● Highly customized configurations available to meet application and customer needs
● Various retention ratings, fitting sizes and types to meet various requirements
檔案下載：
規格說明：
| Materials: |
Membrane, supports, core, sleeve: Polypropylene O-rings (AS568-222): EPDM, fluoroelastomer, E-FKM (encapsulated fluoroelastomer) |
| Dimensions (nominal): |
Length: 263 mm (10.35”) |
| Operating conditions: |
Maximum forward differential pressure: 0.4 MPa @ 20°C (68°F) Maximum reverse differential pressure: 0.25 MPa @ 20°C (68°F) Maximum operating temperature: 80°C (176°F) |
| Retention rating: |
0.3, 0.6, 1, 3, 5, 7, 10, 20, 30 and 40 μm |
