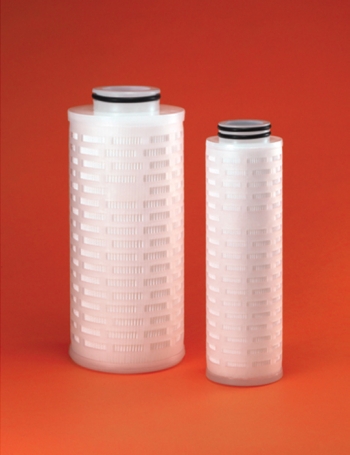

Savana® PP Cartridge Filters
High-flow polypropylene cartridge filters for electronics applications
● Designed for use in filtration of various chemicals in electronics manufacturing applications
● Flat panel display manufacturing - all applications including wet etching, stripping, developer and cleaning processes
● Photovoltaic, chemical manufacuturing, data storage and all other electronics for larger format applications
● Wide variety of sizes and configurations available to meet large format applications and customer requirements
● Improves cost performance with high flow rate and longer filter lifetime
檔案下載：
規格說明：
High-flow polypropylene cartridge filters for electronics applications
● Designed for use in filtration of various chemicals in electronics manufacturing applications
● Flat panel display manufacturing - all applications including wet etching, stripping, developer and cleaning processes
● Photovoltaic, chemical manufacuturing, data storage and all other electronics for larger format applications
● Wide variety of sizes and configurations available to meet large format applications and customer requirements
● Improves cost performance with high flow rate and longer filter lifetime
檔案下載：
規格說明：
| Materials: |
Membrane: Polypropylene Support, core, sleeve: Polypropylene O-ring: EPDM, FKM, E-FKM (AS568-222) |
| Retention rating: |
0.2, 0.45, 1, 2, 3, 4.5, 10, 20, 30, 40 μm |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.4 MPa (4.0 bar; 58.02 psid) @ 20°C (68°F) Maximum forward differential pressure: 0.1 MPa (1.0 bar; 14.50 psid) @ 80°C (176°F) Maximum reverse differential pressure: 0.25 MPa (2.5 bar; 36.26 psid) @ 20°C (68°F) Maximum operating temperature: 80°C (176°F) |
| Dimensions: |
Length: 261 mm (CD-0,10") Diameter: 69 mm (CD-0,10") |
