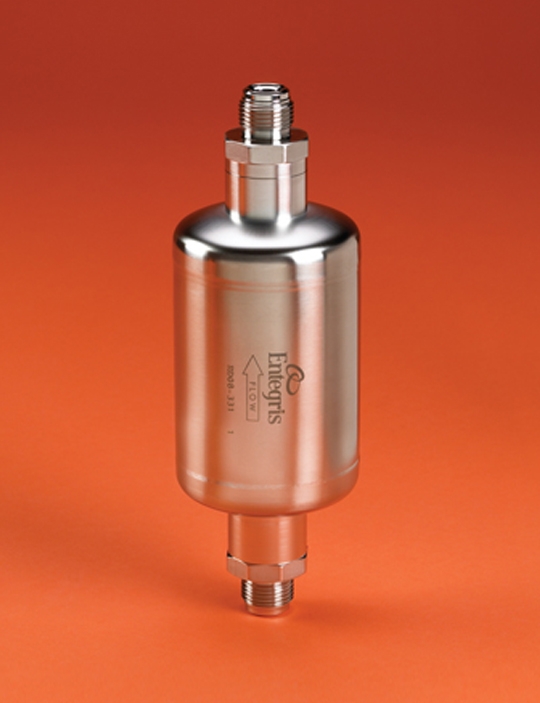

Linegard™ GIGAX-FP In-Line Teflon® Gas Filter
Cost-effective compressed air and inert gas filter for high flow range, noncritical applications
● Filter element - Teflon® PTFE membrane supported by polypropylene structures - provides a cost-effective solution for filtraiton of compressed air and inert gases
● Can be used up-to 3000 SLPM for high-flow applications
檔案下載：
規格說明：
Cost-effective compressed air and inert gas filter for high flow range, noncritical applications
● Filter element - Teflon® PTFE membrane supported by polypropylene structures - provides a cost-effective solution for filtraiton of compressed air and inert gases
● Can be used up-to 3000 SLPM for high-flow applications
檔案下載：
規格說明：
| Materials: |
Membrane: PTFE Supports: Polypropylene O-ring: Encapsulated fluoroelastomer (E-FKM) Housing: 316L Stainless Steel |
| Surface finish interior: |
25 µin Ra |
| Removal rating: |
>0.003 µm (in gas) |
| Maximum Operating Conditions: |
Maxium inlet pressure: 12 bar (174 PSIG) Maximum forward differential pressure: 4.1 bar (59 PSID) Maximum reverse differential pressure: 0.5 bar (7 PSID) Maximum operating temperature: 60°C (140°F) |
| Helium leak rating: |
1 x 10 -10 Pa m3/sec |
| Recommended gases: |
Compressed dry air (CDA) and inert gases |
| Warranty: |
1 year |
