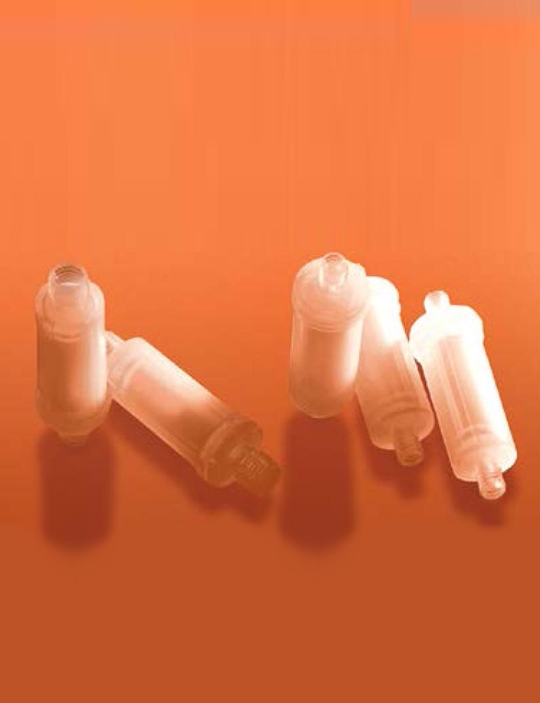

Wafergard® GT-Plus In-Line Gas Filters
Remove particles from inert gases for flow rates up to 30 SLPM
● Efficient, low-cost point-of-use filtration of inert gases
● For flow rates up to 30 SLPM
檔案下載：
規格說明：
Remove particles from inert gases for flow rates up to 30 SLPM
● Efficient, low-cost point-of-use filtration of inert gases
● For flow rates up to 30 SLPM
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic Teflon® fluoropolymer PTFE Supports/housings: PFA Connections: 1⁄8”, 1⁄4” compression seal Membrane area: 12 cm2 (1.9 in2) |
| Particle retention: |
>99.9999999% removal of all particles greater than 0.003 μm diameter (verified at the most penetrating particle size) |
| Operating conditions: |
Maximum operating pressure: 0.41 MPa (4.1 bar, 56.6 PSID) at 20°C Maximum forward differential pressure: 0.34 MPa (3.4 bar, 50 PSID) at 20°C) Maximum reverse differential pressure: 0.03 MPa (0.3 bar, 4.35 PSID) at 20°C Maximum operating temperature: 50°C (122°F) |
| Dimensions: |
Diameter: 21.5 mm (0.85”) Length: 1⁄8” seal: 69 mm (2.7”); 1⁄4” seal: 71.5 mm (2.8”) |
