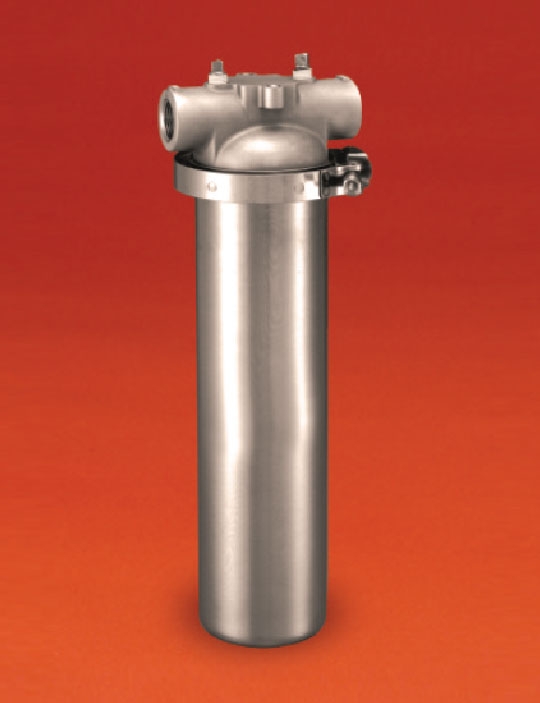

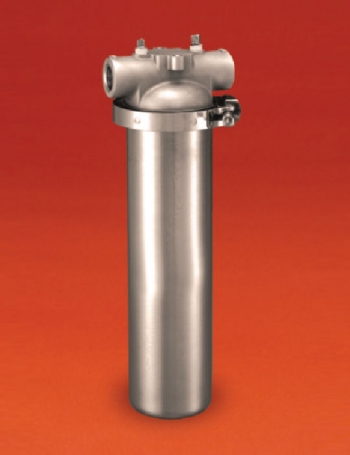

PLJ/PSJ Metal Filter Housings - Discontinued
Metal filter housings for gases, DI water and organic solvents
Metal filter housings for gases, DI water and organic solvents
● This product has been discontinued in December 2010 - Replacement product is Processgard® PL Housings
● Excellent chemical resistance: constructed of SUS316 stainless steel
● Electropolished finish ensures cleanliness in the process stream
● Available in lengths from 4" to 30" to accommodates a wide rangeof filter sizes
● Can accommodate seal type, o-ring type or flat type filter cartridges
檔案下載 ：
規格說明 ：
|
Materials: |
Head: SUS 316 or equivalent |
|
Finish: |
Head interior/exterior: Electrolytic grinding (cast surface about 12S, except for the seal sides of cartridge o-ring) |
|
Connections: |
Cartridge: 10” Code 0, 2-222 o-rings flat type cartridge filter |
|
Maximum operating pressure: |
0.69 MPa (6.9 bar, 100 PSI) @ 40°C (104°F) |
