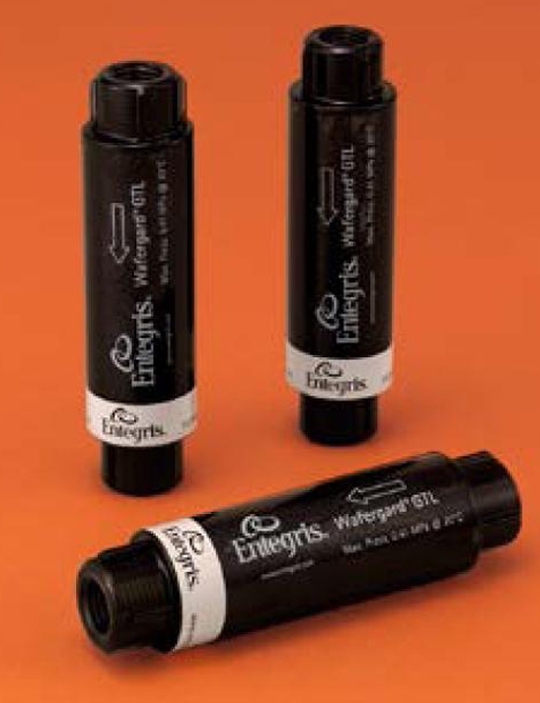

Wafergard® GTL In-Line Gas Filters
Remove particles from inert gases for flow rates up to 80 SLPM
● Efficient, low-cost point-of-use filtration of inert gases
● For flow rates up to 80 SLPM
檔案下載：
規格說明：
Remove particles from inert gases for flow rates up to 80 SLPM
● Efficient, low-cost point-of-use filtration of inert gases
● For flow rates up to 80 SLPM
檔案下載：
規格說明：
| Materials: |
Membrane: Hydrophobic Teflon® fluoropolymer PTFE Supports/housings: Polysulfone Connections: Rc1⁄4 (PT1⁄4 female), 1⁄4” NPT female Membrane area: 25 cm2 (3.9 in2). |
| Particle retention: |
>99.9999999% removal of all particles greater than 0.003 μm diameter (verified at the most penetrating particle size) |
| Operating conditions: |
Maximum operating pressure: 0.41 MPa (4.1 bar, 56.6 PSID) at 20°C Maximum forward differential pressure: 0.41 MPa (4.1 bar, 56.6 PSID) at 20°C Maximum reverse differential pressure: 0.03 MPa (0.3 bar, 4.35 PSID) at 20°C Maximum operating temperature: 50°C (122°F) |
| Dimensions: |
Diameter: 25 mm (0.98”) Length: 101 mm (4.0”) |
