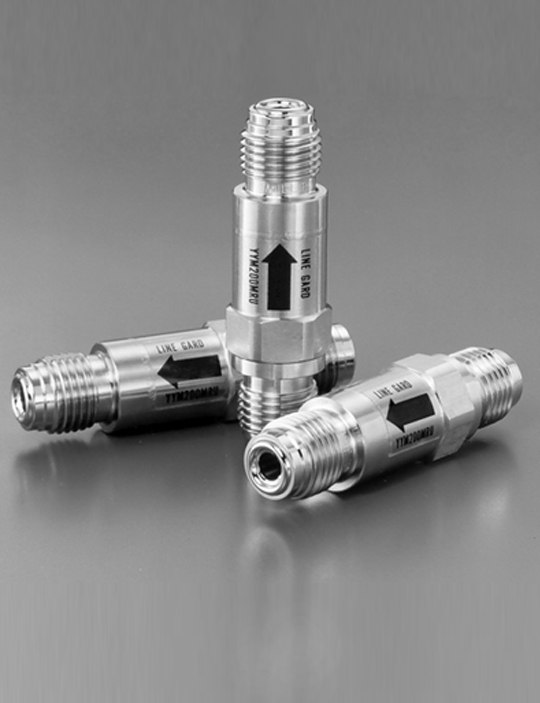

Linegard™ Micro In-Line Gas Filters
Economical safeguard for system components
● Compact in-line gas filter made of 100% SUS316L
● Removes 0.2 μm particles to protect sensitive gas components
● Economical safeguard against contamination
● Ideal for high-temperature and pulsing applications
檔案下載：
規格說明：
Economical safeguard for system components
● Compact in-line gas filter made of 100% SUS316L
● Removes 0.2 μm particles to protect sensitive gas components
● Economical safeguard against contamination
● Ideal for high-temperature and pulsing applications
檔案下載：
規格說明：
| Materials: |
Filter, housing and end cap: SUS316L Surface finish interior: <=7 μin Ra (YYUM2 00 MS1 is Ra <3.2 μin) Helium leak rating: 9x10-9 atm cc/sec. or less |
| Removal rating: |
0.2 μm |
| Operating conditions: |
Housing design pressure: 19.61 MPa (196.1 bar, 2800 PSI) Maximum forward differential pressure: 2.99 MPa (29.9 bar, 430 PSID) Maximum reverse differential pressure: 0.48 MPa (4.8 bar, 69 PSID) Maximum operating temperature: 100°C (212°F) |
| Dimensions: |
Diameter: 18.5 mm (0.73”) Length: 1/4” gasket seal 63.3 mm (2.5”); ¼” compression seal 52.7 mm (2.1”) (Swagelok® fitting compatible) |
