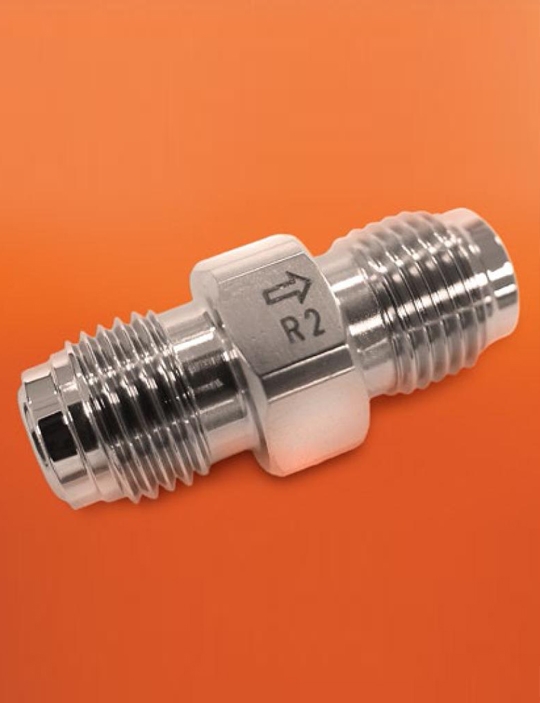

Unigard™ In-Line Gas Filters
Economical safeguard for system components
● Fits in place of standard 1/4" gasket seal fittings
● Space efficient for easy installation
● Protects critical components from particle damage
● Ideal for high-pressure and high-temperature applications
檔案下載：
規格說明：
Economical safeguard for system components
● Fits in place of standard 1/4" gasket seal fittings
● Space efficient for easy installation
● Protects critical components from particle damage
● Ideal for high-pressure and high-temperature applications
檔案下載：
規格說明：
| Materials: |
Membrane and housing: Sintered 316L stainless steel filter media and housing Surface finish interior: <=7 μin Ra Helium leak rating: 9`10-9 atm cc/sec. |
| Particle retention: |
Greater than 90% removal of all particles larger than 1.0 μm diameter at flow rates up to 30 SLPM |
| Downstream cleanliness: |
Less than 1 particle/liter greater than 0.17 μm with pulse pressure of 0 to 2.0 kg/cm2 |
| Operating conditions: |
Housing design pressure: 16.2 MPa (162 bar, 2300 PSI) @ 23°C Maximum forward differential pressure 9.2 MPa (92 bar, 1300 PSID) Maximum reverse differential pressure 6.7 MPa (67 bar, 50 PSID)Maximum operating temperature Inert gases: 400°C (752°F) |
| Dimensions: |
Length: 39.4 mm (1.55") seal to seal face |
