Application
Application

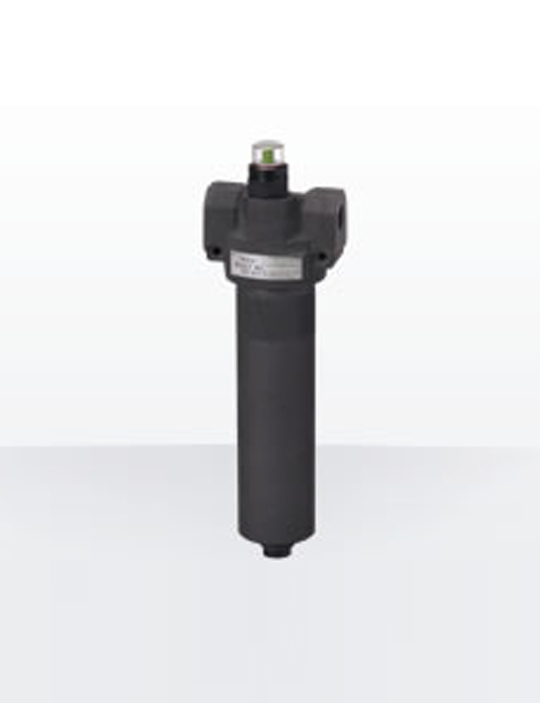

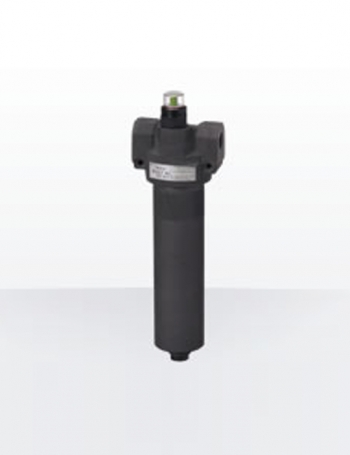

The line filter is installed in-line to maintain the oil purity level in the hydraulic piping and protect hydraulic equipment from contaminants.
Features
● Downward extraction type element● Select from many options like indicators, relief valves, etc
● Choose from 2 types of element lengths for all inner diameters
● Element common to GM type filters
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
0～21MPa |
- |
|
Indicator |
n/a |
Select from visual type, electric contact type, and electric contact type (micro capacity) |
|
Relief valve (Bypass) |
n/a |
Installation optional |
|
Connection |
Rc threaded type | - |
|
Magnet |
- |
- |
