MVF
Application
Application

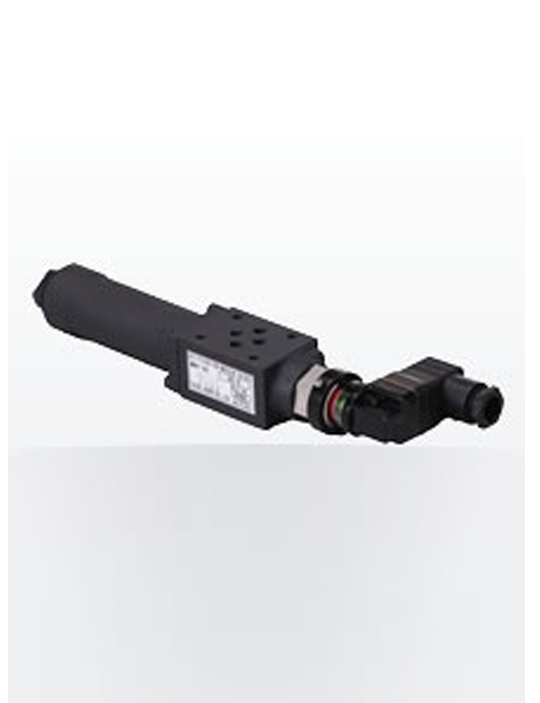

A compact line filter with ISO 4401 compliant clamp face.
Features
● Clamp face dimensions conform to all standardsMVF-01：ISO4401-AB-03-4-A
MVF-03：ISO4401-AC-05-4-A
● Filter is set to P port
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Corresponding fluid |
Mineral oil |
Phosphate ester oil, water glycol oil |
|
Maximum working pressure |
0～25MPa |
- |
|
Indicator |
n/a |
Select from visual type, electric contact type, and electric contact type (micro capacity) |
|
Relief valve (Bypass) |
- |
- |
|
Connection |
Modular type | - |
|
Magnet |
- |
- |
