ATK
Application

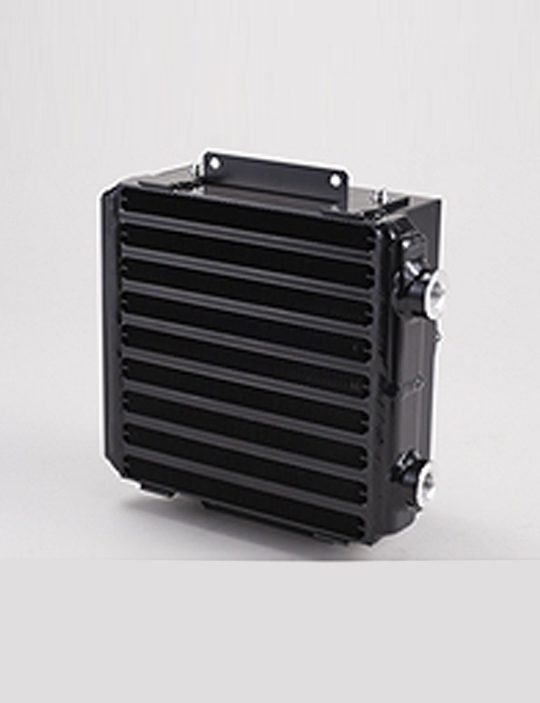

An air-cooled oil cooler that is ideal for environments where cooling water cannot be used.
Application
An air-cooled oil cooler that is ideal for environments where cooling water cannot be used.
Features
● Compact, air-cooled oil cooler● Choose from many voltage settings
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Maximum working pressure |
1.0MPa |
- |
|
Corresponding fluid |
Mineral oil |
- |
|
Radiator material |
Aluminum |
- |
|
Rated voltage |
Select single phase 100V or 200V×50/60Hz |
Single phase 115V, 120V, 220V, 230V are built-to-order. *Inquire about DC. |
|
Nominal output(Motor) |
35/33W(ATK-2432：35/33Wx2) |
- |
|
Permissible pressure change width |
0.3MPa |
- |
| Fan guard | Equipped |
- |
