ATF
Application

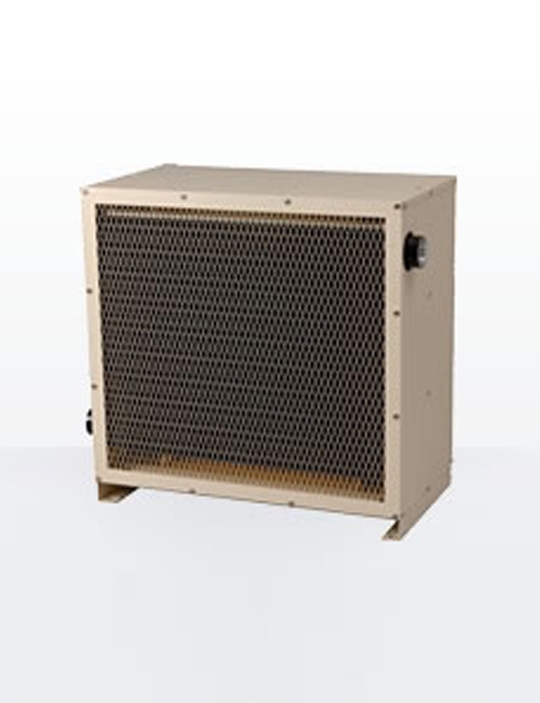

An air-cooled oil cooler that is ideal for environments where cooling water cannot be used.
Application
An air-cooled oil cooler that is ideal for environments where cooling water cannot be used.
Features
● Midium sized air-cooled oil cooler● "With case" fully covers radiator and fan motor.
● Both vertical and holizontal installation is selectable.
檔案下載：
規格說明：
|
Items |
Standard specifications |
Possible corresponding specifications / options, etc. |
|
Maximum working pressure |
1.0MPa |
- |
|
Corresponding fluid |
Mineral oil |
- |
|
Radiator material |
Aluminum |
- |
|
Rated voltage |
3-Phase 200V-220V×50/60Hz |
Modifications to 3-Phase 400V-440V(415V)×60Hz(50Hz) possible |
|
Nominal output(Motor) |
200～400W |
- |
|
Permissible pressure change width |
0.3MPa |
- |
| Fan guard | Choose from equipped/non-equipped(*Case attachment is non-equipped only) | - |
| Case | Choose from equipped/non-equipped | - |
