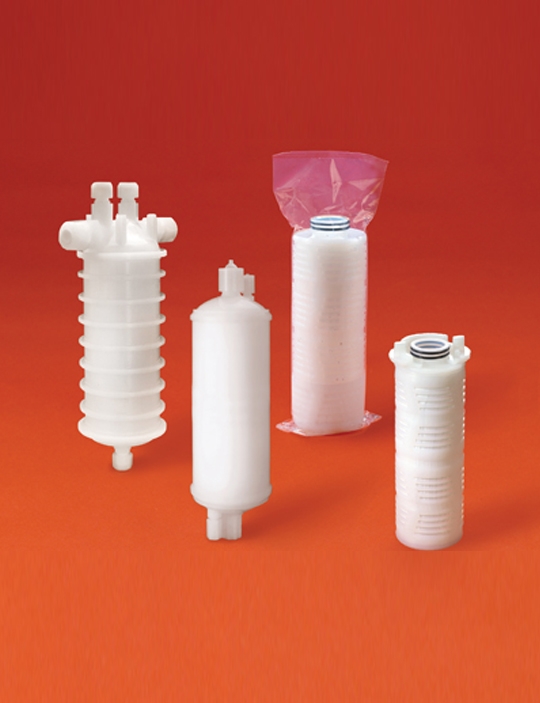

Fluorogard® ATE Cartridge Filters
All-PTFE filters with broad chemical and temperature range compatibility for high flow and low cost of ownership
● ncreased yield, higher throughput through improved chemical cleanliness: retention rating down to 0.03 μm; low particle shedding; low extractable level
● Faster bath cleanup, lower COO through higher surface area using M-pleat structure
● Higher flow, longer lifetime, lower pressure drop (less stress on other components like pumps, etc.)
● Available in a prewet version for quicker/easier installation with no solvent needed for prewetting and no flushing required
Product Documentation
Product Specifications
All-PTFE filters with broad chemical and temperature range compatibility for high flow and low cost of ownership
● ncreased yield, higher throughput through improved chemical cleanliness: retention rating down to 0.03 μm; low particle shedding; low extractable level
● Faster bath cleanup, lower COO through higher surface area using M-pleat structure
● Higher flow, longer lifetime, lower pressure drop (less stress on other components like pumps, etc.)
● Available in a prewet version for quicker/easier installation with no solvent needed for prewetting and no flushing required
Product Documentation
Product Specifications
| Materials: |
Membrane: PTFE Supports: PFA Cartridge o-rings: Chemraz®, Kalrez® 4079, Teflon® encapsulated Viton® (TEV), Teflon encapsulated Viton® Extreme™ ETP, Teflon encapsulated EPDM/EPR (TEE) Disposable shell: PFA |
| Retention ratings: |
Dry: 0.1, 0.05 and 0.03 μm |
| Membrane surface area: |
>2.2 m2 |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.44 MPa (4.4 bar; 64 PSI) @ 25°C; 0.05 MPa (0.5 bar; 7.5 PSI) @ 180°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar; 50 PSI) @ 25°C Maximum operating temperature: 180°C (at the above conditions) |
| Particle cleanliness: |
<15 particles/10 mL ≥0.2 μm after a 5-minute flush at 5 L/min |
| Metallic extractable levels: |
<40 μg/10” element |
