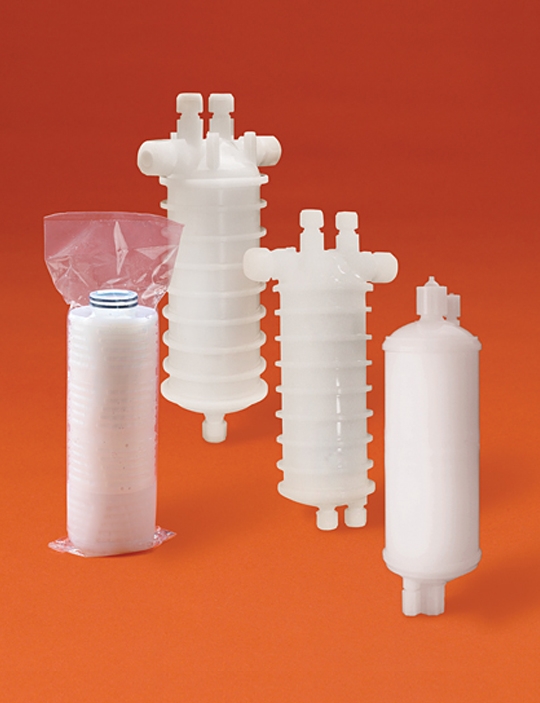

QuickChange® ATE Cartridge Filters
Most advanced, best value filtration with the highest flow, especially for viscous chemistries
● Available in retention ratings of 0.03 µm, 0.05 µm and 0.1 µm
● 10" and 20" cartridge and Chem-Line® I and II disposable filter designs
● Highest membrane surface area: 2.2 m² (23.7 ft²) PTFE membrane area - 10", 4.4 m² (47.4 ft²) - 20"
● Utilizing advanced M-Pleating membrane technology for highest flow potential
檔案下載：
規格說明：
Most advanced, best value filtration with the highest flow, especially for viscous chemistries
● Available in retention ratings of 0.03 µm, 0.05 µm and 0.1 µm
● 10" and 20" cartridge and Chem-Line® I and II disposable filter designs
● Highest membrane surface area: 2.2 m² (23.7 ft²) PTFE membrane area - 10", 4.4 m² (47.4 ft²) - 20"
● Utilizing advanced M-Pleating membrane technology for highest flow potential
檔案下載：
規格說明：
| Materials: |
Membrane: Prewet, nondewetting PTFE Supports: PFA Cartridge o-rings: TEV (Teflon® Encapsulated Viton®), Chemraz® or Kalrez®, Viton® Extreme™ EIP Shell (for disposables): PFA (Chem-Line™ I and Chem-Line II type) |
| Retention ratings: |
0.03 µm, 0.05 µm, 0.1 µm and 0.2 µm |
| Membrane area: |
4" - N/A 10" - 2.2 m2 (23.7 ft2) 20" - 4.4 m2 (47.4 ft2) 30" - N/A |
| Cartridge connections: |
Code 0 (2-222) o-rings |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.44 MPa (4.41 bar, 64 PSID) @ 25°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) @ 25°C Maximum operating temperature: 180°C at 0.05 MPa (0.5 bar 7.3 PSI) |
| Metallic extractables: |
Cartridge: Standard - <25 µg/device; UCM - <10 µg/device Disposables: Standard - <10 µg/device; UCM - <3 µg/device |
| Particle shedding cleanliness: |
<15 particles/10 mL > 0.2 µm at 5 L/min DI water flow |
| TOC recovery (per 10" equivalent): |
Cartridges: within 10 ppb of feed after 120 L flush at 1 L/min Disposables: within 5 ppb of feed after 25 minutes flush at 5 L/min |
| Resistivity recovery: |
Resistivity recovery within 0.5 mega-ohm of feed after a 120-liter water flush at 1 l/min (per 10" equivalent) |
