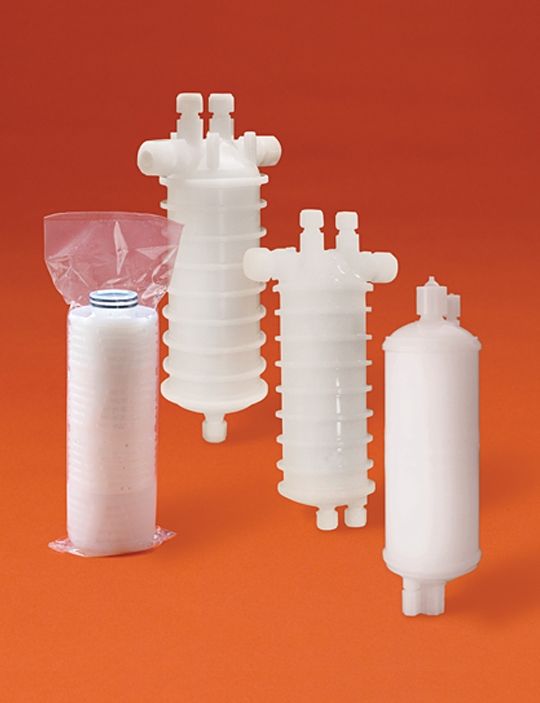

QuickChange® ATM Cartridge Filters
Good value PTFE filtration for higher flow recirculating applications
● Available in retention ratings of 0.03 µm, 0.05 µm and 0.2 µn
● 10 and 20" cartridge and Chem-Line™ I and II disposable filter designs
● 1.8 m² (23.7 ft²) - 10", 3.6 m² (38.8 ft²) - 20" cartridge
● Utilizing Entegris' advanced M Pleating membrane technology
檔案下載：
規格說明：
Good value PTFE filtration for higher flow recirculating applications
● Available in retention ratings of 0.03 µm, 0.05 µm and 0.2 µn
● 10 and 20" cartridge and Chem-Line™ I and II disposable filter designs
● 1.8 m² (23.7 ft²) - 10", 3.6 m² (38.8 ft²) - 20" cartridge
● Utilizing Entegris' advanced M Pleating membrane technology
檔案下載：
規格說明：
| Materials: |
Membrane: Prewet, nondewetting PTFE Supports: PFA O-rings: TEV, Chemraz® or Kalrez® perfluoroelastomers |
| Retention ratings: |
0.03 µm, 0.05 µm, 0.1 µm and 0.2 µm |
| Membrane area: |
4" - N/A 10" - 1.8 m2 (19.4 ft2) 20" - 3.6 m2 (38.8 ft2) 30" - N/A |
| Connections: |
Code 0 (2-222) o-rings |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.44 MPa (4.41 bar, 64 PSID) @ 25°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) @ 25°C Maximum operating temperature: 180°C at 0.05 MPa (0.5 bar 7.3 PSI) |
| Metallic extractables: |
Device: Standard UCM Cartridge: <25 µg/device <10 µg/device Disposables: within 5 ppb of feed after 25 minutes flush at 5 LPM |
| Particle shedding cleanliness: |
<15 particles/10mL > 0.2 µm at 5 LPM DI Water Flow |
| TOC recovery (per 10" equivalent): |
Cartridges: within 10 ppb of feed after 120 L flush at 1 LPM Disposables: within 5 ppb of feed after 25 minutes flush at 5 LPM |
| Resistivity recovery: |
Resistivity recovery within 0.5 mega-ohm of feed after a 120-liter water flush at 1 l/min (per 10" equivalent) |
