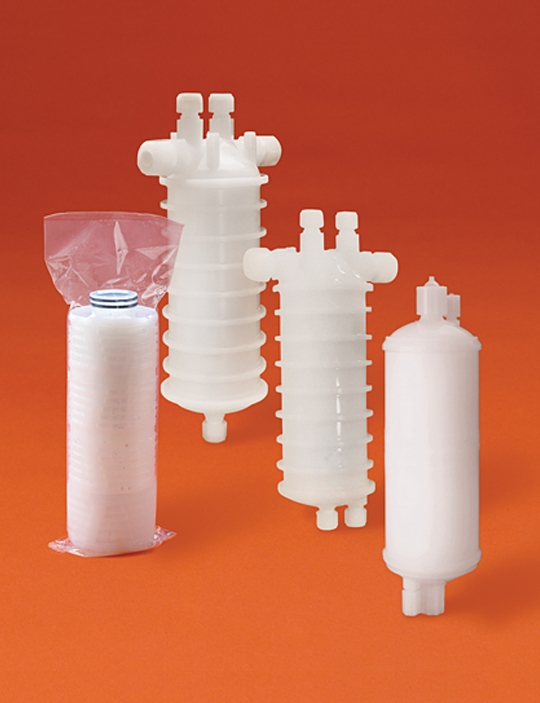

QuickChange® ATX Cartridge Filters
Low-cost filtration with moderate flow needs in legacy processes
● D Available retention ratings of 0.05 µm, 0.1 µm and 0.2 µm
● 4", 10" and 20" cartridge and Chem-Line™ I and II disposable filter designs
● 0.5 m² (5.4 ft²) - 4", 1.3 m² (14 ft²) - 10", 2.6 m² (28 ft²) - 20" cartridge
● Utilizing Entegris' standard membrane pleating technology
檔案下載：
規格說明：
Low-cost filtration with moderate flow needs in legacy processes
● D Available retention ratings of 0.05 µm, 0.1 µm and 0.2 µm
● 4", 10" and 20" cartridge and Chem-Line™ I and II disposable filter designs
● 0.5 m² (5.4 ft²) - 4", 1.3 m² (14 ft²) - 10", 2.6 m² (28 ft²) - 20" cartridge
● Utilizing Entegris' standard membrane pleating technology
檔案下載：
規格說明：
| Materials: |
Membrane: Patented nondewetting PTFE packaged in ultrapure DI water Supports: PFA pleat supports, sleeve and end caps O-rings: See ordering information |
| Retention ratings: |
0.05 µm, 0.1 µm and 0.2 µm |
| Membrane area: |
4" - 0.5 m2 (5.4 ft2 ) 10" - 1.3 m2 (14.0 ft2) 20" - 2.6 m2 (28.0 ft2) 30" - N/A |
| Connections: |
Code 0 (2-222) |
| Maximum operating conditions: |
Maximum forward differential pressure: 0.44 MPa (4.41 bar, 64 PSID) @ 25°C Maximum forward differential pressure: 0.05 MPa (0.5 bar, 7.3 PSID) @ 150°C Maximum reverse differential pressure: 0.35 MPa (3.5 bar, 50 PSID) @ 25°C Maximum operating temperature: 150°C @ 0.05 MPa (0.5 bar, 7.3 PSI) |
| Metallic extractables: |
Cartridge: Standard - <25 µg/device; UCM - <10 µg/device Disposable: Standard - <10 µg/device; UCM - < 3 µg/device |
| Particle shedding cleanliness: |
<15 particles/10 mL > 0.2 µm at 5 L/min DI water flow |
| TOC recovery (per 10" equivalent): |
Within 10 ppb of feed after 120 L flush at 1 L/min Within 5 ppb of feed after 25 minutes flush at 5 L/min |
| Resistivity recovery: |
Within 0.5 mega-ohm of feed after a 120-liter water flush at 1 L/min (per 10" equivalent) |
