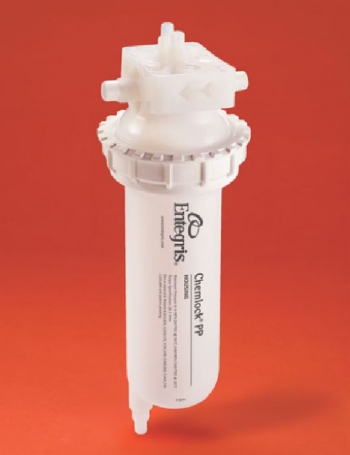

Chemlock® Polypropylene Filter Housings

Chemlock® Polypropylene Filter Housings

High-purity liquid filter housings

● Revolutionary space-saving design reduces overall footprint
● Easy and safe cartridge filter changeout
● Lock-in design perfectly seats the cartridge filter

檔案下載 :



規格說明 :

Materials:

Head and bowl: Polypropylene (PP)
Locking ring: PVDF (nonwetted part)
O-ring: 2-345 EPR

Fluid connections:

FNPT, Flare, Union or Rc

Cartridge connections:

Code 0, 2-222 O-ring and Chemlock cartridges with key

Operating conditions:

Maximum static inlet pressure: 0.14 MPa (1.4 bar, 20 PSI) @ 90°C, 0.69 MPa (6.9 bar, 100 PSI) @ 25°C
Maximum operating temperature: 90°C
