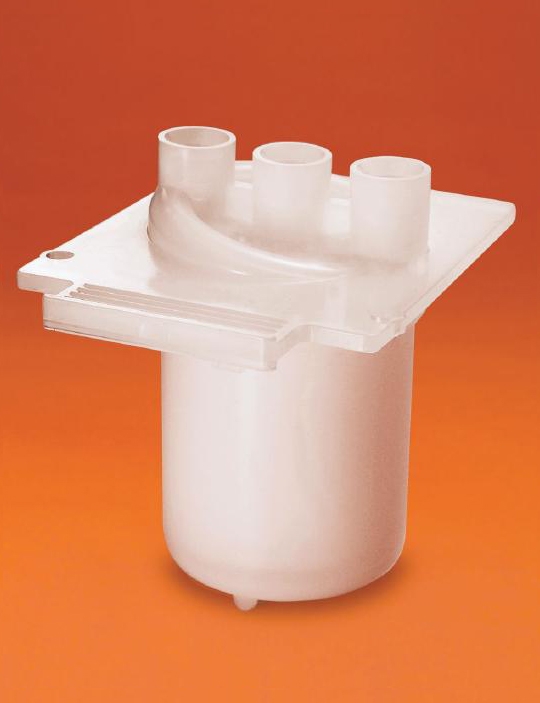

Impact® SR LHVD Disposable Filter
Rapid change out, all-Teflon® fluoropolymer filter for point-of use filtration of aggressive solvents
● For use with the IntelliGen photochemical dispense system and Impact ST manifold
● For small - to mid-volume point-of-use aggressive solvent filtration applications
檔案下載：
規格說明：
Rapid change out, all-Teflon® fluoropolymer filter for point-of use filtration of aggressive solvents
● For use with the IntelliGen photochemical dispense system and Impact ST manifold
● For small - to mid-volume point-of-use aggressive solvent filtration applications
檔案下載：
規格說明：
| Materials: |
Membrane: PTFE Supports, core, sleeve, shell: PFA |
| Dimensions: |
Height: 89.5 mm ±1 mm (3.52” ±0.04”) Width: 71.5 mm ±1 mm (2.81” ±0.01”) |
| Membrane area: |
600 cm2(93 in2) |
| Holdup volume: |
≤45 cc |
| Maximum operating conditions: |
Maximum inlet pressure: 3.9 bar (56.6 psid, 4.0 kg/cm2) @ 25°C (77°F) Maximum forward/reverse differential pressure: 0.29 MPa (2.9 bar, 42 psi) @ 25°C (77°F) Maximum operating temperature: 30°C (86°F) |
| Compatibility: |
All photochemical solvents |
| Wettability: |
Prewetting should be considered with higher surface tension solvents such as NMP, cyclohexanone, GBL, EGMEA, ethyl lactate and MMP |
