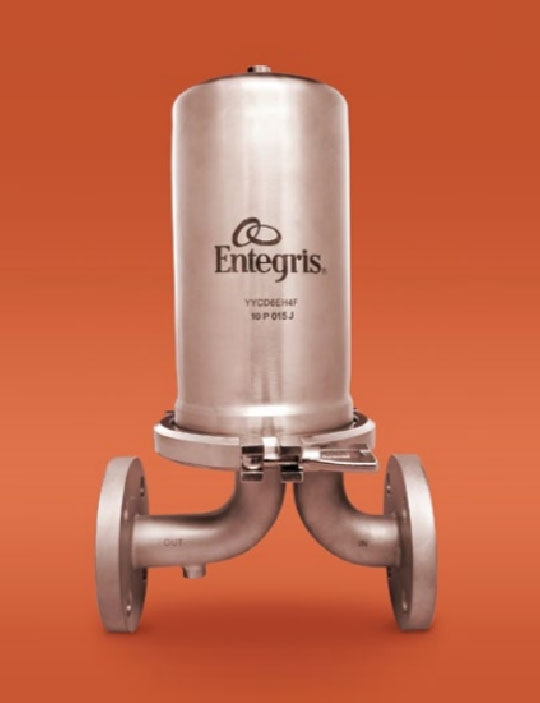

226 HP Half Dove Tail Housings
Metal filter housings for gases, DI water and organic solvents
Metal filter housings for gases, DI water and organic solvents
● Constructed of 316L stainless steel – provides excellent chemical resistance.
● Upgraded o-ring groove design – half dove tail o-ring groove design protects the o-ring from being separated from the housing during filter changeout.
● Improved connection and various drain/vent ports – minimizes exposure to contaminants and maintains high performance of the housing in high-pressure applications. Wider outlet drain and vent ports allow chemicals to drain faster.
● Can accommodate o-ring or flat type filter cartridge. Keeps cartridge stable in high-flow applications. Housing can be used in gas or fluid applications.
檔案下載 ：
規格說明 ：
|
Materials: |
Head, bowl, drain, vent, plug, spring: SUS316L stainless steel |
|
Connections: |
Vent/drain: 1⁄4”, 3⁄8” RC (PT) |
|
Dimensions |
Length: 380 mm (14.9”) – to center of inlet/outlet |
|
Operating conditions: |
Maximum operating pressure: 1.5 MPa @ 80°C (176°F) - static |
