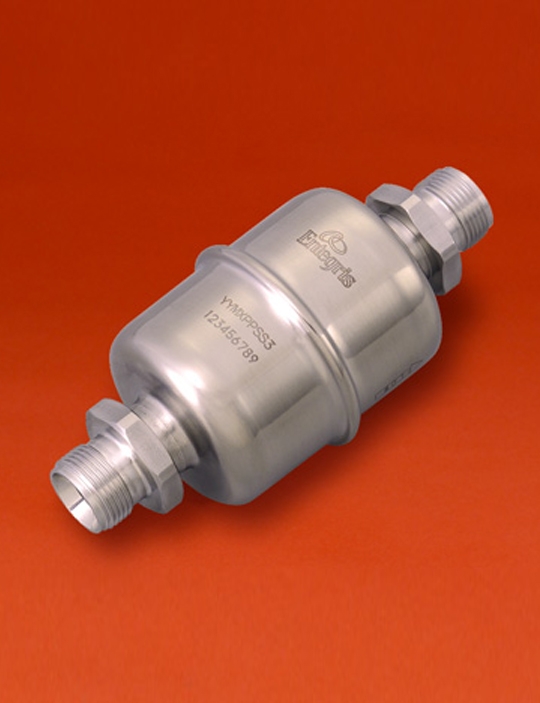

Linegard™ Max FP In-Line Teflon® Gas Filter
Cost-effective 0.003 µm compressed air and inert gas filter for mid-flow range, noncritical applications
● Filter element - PTFE membrane supported by polypropylene structures - provides a cost-effective solution
● Large inside diameter of filter element is designed for high flow rate/low pressure drop, resulting in up to 1000 SLPM with compact housing
● Various fitting and length configurations provide ease of installation without design changes of the gas panel and delivery system
檔案下載：
規格說明：
Cost-effective 0.003 µm compressed air and inert gas filter for mid-flow range, noncritical applications
● Filter element - PTFE membrane supported by polypropylene structures - provides a cost-effective solution
● Large inside diameter of filter element is designed for high flow rate/low pressure drop, resulting in up to 1000 SLPM with compact housing
● Various fitting and length configurations provide ease of installation without design changes of the gas panel and delivery system
檔案下載：
規格說明：
| Materials: |
Membrane: PTFE Supports: Polypropylene O-ring: Fluoroelastomer (FKM) Housing: 316L Stainless steel |
| Surface finish interior: |
25 µin Ra |
| Removal rating: |
>0.003µm (in gas) |
| Maximum Operating Conditions: |
Maximum inlet pressure: 70 bar (1015 PSIG) Maximum forward differential pressure: 4.1 bar (59 PSID) Maximum reverse differential pressure: 2 bar (29 PSID) Maximum operating temperature: 60°C (140°F) |
| Helium leak rating: |
1 x 10-¹ Pa m³/sec |
| Warranty: |
1 year |
